Model ASL-700

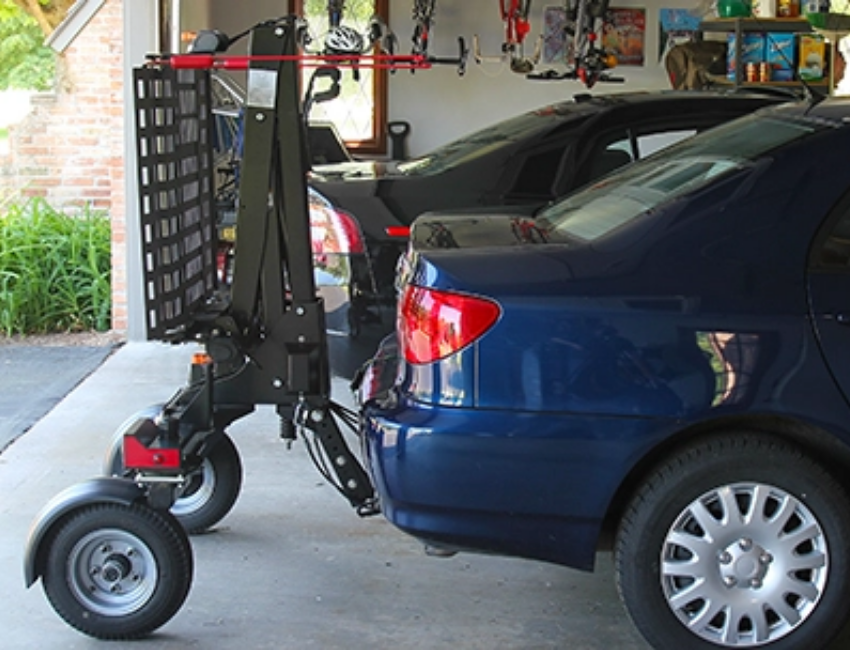

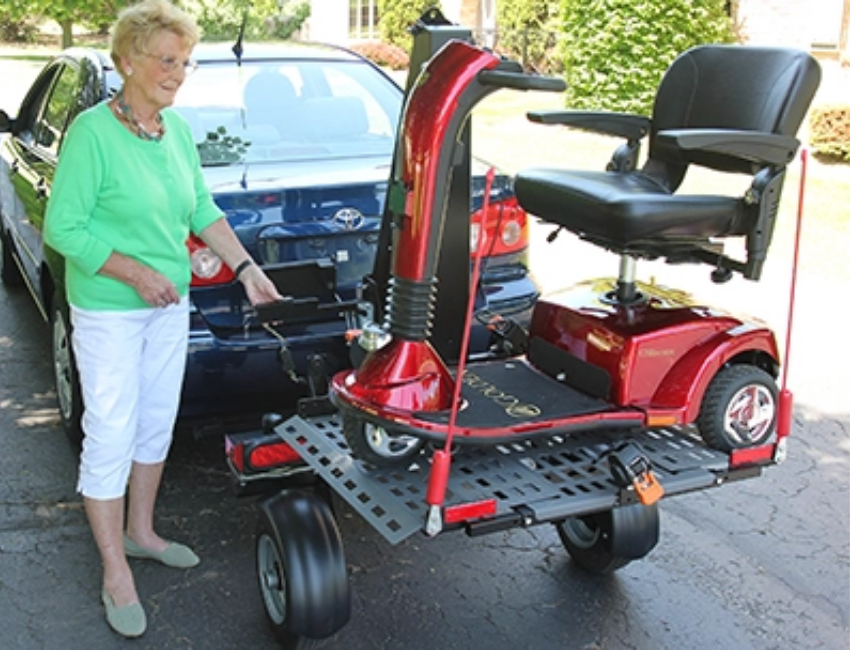

Mobility devices weighing up to 350 lbs/159 kgs can now be transported with small or mid-size cars thanks to Bruno’s revolutionary Chariot. The Chariot is a lift on wheels with its own independent suspension to bear the full weight and force of the load. Designed for safety and ease of operation, the Chariot’s wheels spin 360 degrees to keep it precisely in line with your car. It’s impossible to jack-knife! Also for use on select SUVs, CUVs and mini-vans.

Video



Photos



Bruno Chariot Brochure

Highlights

  • Power up/down platform with single button operation
  • Adjustable platform fits most scooters/powerchairs
  • Platform manually folds when not in use
  • Easy drive on/drive off platform with traction coating
  • Retractable self-tensioning belts with one-hand operation
  • Independent suspension; 360 degree swivel wheels
  • Access most rear hatch/trunks by slightly lowering platform
  • Lighted license plate holder; light package: running lights, brake lights, turn signals
  • Manual back-up for peace of mind
  • No scooter or powerchair modifications
  • Easily transfers to another applicable vehicle
  • Eligible for auto manufacturer potential rebates

Options

Chariot-optional-cornermarkersCorner Markers

Easy visual reminders of platform size for backing up


Chariot-optional-sparetire1Spare Tire

Added security and peace of mind


Vinyl Scooter CoverVinyl Cover

All-weather mobility device protection

User Requirements

  • Walk to the rear of the vehicle and vice versa
  • Stand for two to three minutes
  • Drive mobility device on/off platform
  • Hold down a button on the control arm
  • Secure mobility device: lean over, release lever, connect hook to receiver on mobility device, engage lever (all can be performed using one hand)

Specs

  • Lifting capacity: 350 lb/159 kg
  • Installed weight: 335 lb/152 kg
  • Max mobility device width: 27 in/69 cm
  • Max mobility device wheelbase: 38.5 in/97.8 cm
  • Overall height: 65 in/165 cm
  • Hitch: frame mounted Class I or II (receiver hitch required)
  • Hitch height: 8.5 in/22 cm to 16 in/41 cm
  • 3-year limited warranty
