BraunAbility® Chrysler Pacifica

Power Fold-Out XT Wheelchair Accessible Conversion

With a taller floor drop and 56” doorway height, the BraunAbility Pacifica Power Fold-Out XT is the perfect fit for individuals who sit taller in their wheelchairs, providing easy entries and exits and ideal visibility over the dash and out windows. Like the rest of the BraunAbility Pacifica family, the Power Fold-Out XT offers best-in-class doorway and ramp width and exceptional interior.

Chrysler Wheelchair Vans for Sale

Why Choose the BraunAbility Pacifica?

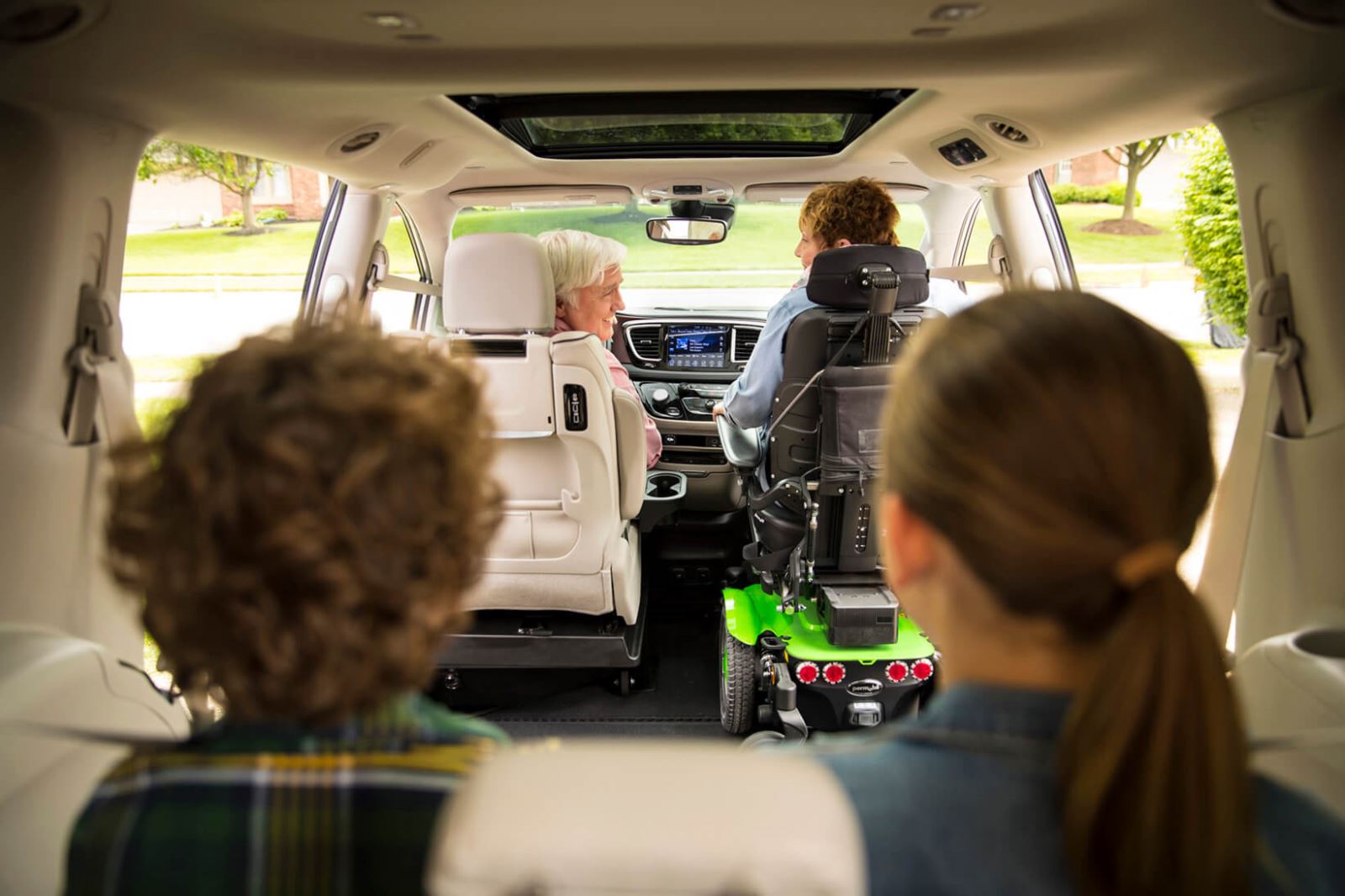

The Most Spacious Cabin Interior

Most spacious cabin interior of any Pacifica
Most doorway height and width to accommodate even the largest wheelchairs
Most obstruction-free maneuverability ever

The Widest and Strongest Ramp

No other Pacifica ramp—infloor or foldout—is as wide or strong
1,000-pound capacity is the most in the industry
Two inches wider than any other ramp on the road

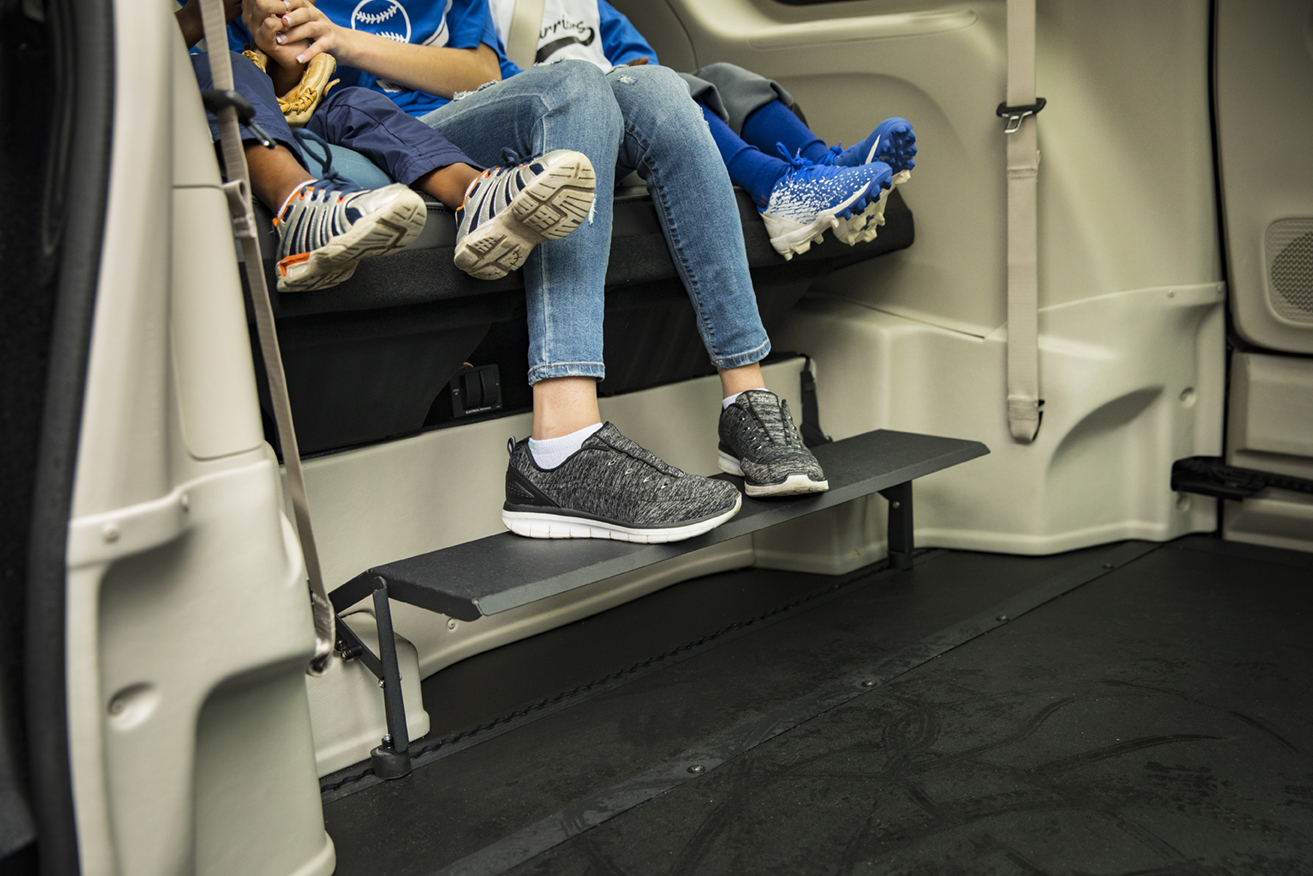

Full-Length Third-Row Footrest

Sits three passengers comfortably
Folds out when needed, stows out of sight when not
Full-length to accommodate each backseat passenger

BraunAbility Pacifica

Power Fold-Out XT Features

56” doorway height is ideal for wheelchair users who sit taller in their chairs
Ramp folds against side passenger door and can deploy onto curbs
Foldout ramp easily pushes open in case of emergency, making it ideal for independent drivers
Extra-wide ramp and doorway
Ramp and interior lighting to see easily at night

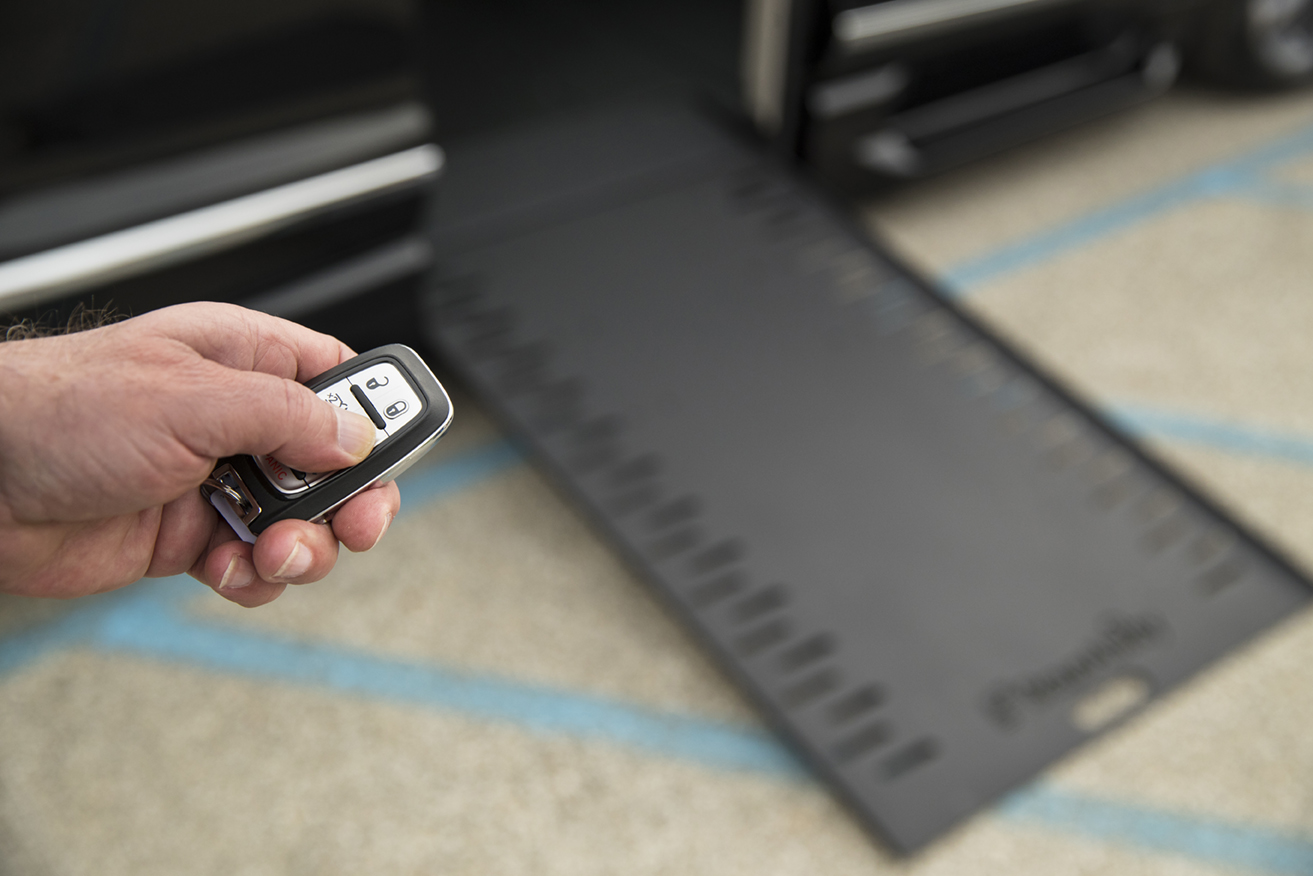

Integrated key fob operates door and ramp at the touch of a button
Heavy-duty 1000-lb capacity ramp
Removable cupholders fit driver or passenger seats

Find Out More

Download Your BraunAbility Fold-Out XT Brochure

Download Brochure

Tools & Resources

Chrysler Pacifica Power Fold-Out XT

Dimensions

BraunAbility Chrysler Pacifica Power Fold-Out XT

Door Opening Usable Width	A	32.375"
Door Opening Usable Height	B	57"
Interior Height at Center of Van	C	60"
Interior Height at Driver/Passenger Position¹	D	60"
Ramp Length	E	52"
Ramp Width (Usable Clear Opening)	F	30.125"
Ramp Angle (with Vehicle Kneeled)²	G	8.6°
Floor Length (Behind Front Seat Strikers)	H	71"
Overall Interior Floor Legth (Flat Area)	I	98.5"
Interior Width at Slide Doors (Door Closed)	J	64"
Interior Width at B Pillars	K	62.25"
