Dimension Reference Guide

Find Your Fit

Compare Dimensions of Wheelchair Accessible Vehicles

Person measuring height of man seated in a wheelchair in the showroom of a wheelchair accessible van dealershipMobility is never a one-size-fits-all solution, which is why The Creative Mobility Group offers so many different wheelchair accessible vehicles, entry types, and entry heights to meet the needs of our customers. Use our easy-reference Wheelchair Van Dimension Reference Guide to get a closer look at the vehicles we offer and to better understand your mobility options. The guide includes critical wheelchair van and SUV dimensions for both current and previous model BraunAbility and VMI vehicles.

As you look for a wheelchair van, our Wheelchair Van Dimension Guide can help you narrow down your search to identify which options could be the best fit for you, your wheelchair, and your family. Once you have identified one or more wheelchair accessible vehicles you think will fit your needs,  you’ll want to see the vehicles in person! While knowing dimensions and measurements is important, there’s no comparison to seeing and trying out a vehicle at a dealership where you can test the entryway height, ramp angle, and interior space firsthand. Sometimes, you may determine what you thought could work for you really isn’t comfortable in the end. You can connect with The Creative Mobility Group to set up a walk-through appointment, mobility consultation, or test-drive at our dealership or in your driveway!

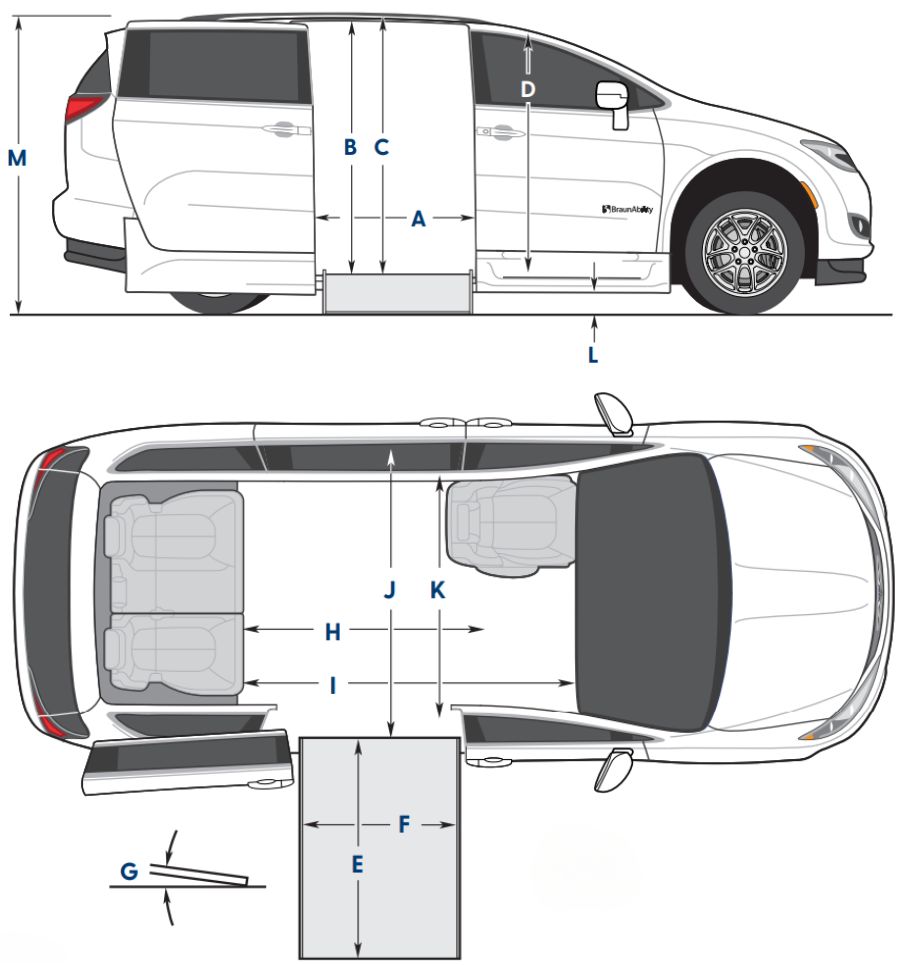

Wheelchiar Van Dimension Reference Guide

BraunAbility and VMI Wheelchair Accessible Vehicles


ADoor Opening Usable Width
BDoor Opening Usable Height
CInterior Height at Center of Van
DInterior Height at Driver/Passenger Position¹
ERamp Length
FRamp Width
GRamp Angle (with Vehicle Kneeled)²
HFloor Length (Behind Front Seat Strikers)
IOverall Interior Floor Length (Flat Area)
JInterior Width at Slide Doors (Door Closed)
LGround Clearance
MRamp Capacity

ConversionModel YearsABCDEFGHIJLM
BraunAbility Power In‑Floor2021‑202330.5"54.5"59"58"52"30.25"57"90.25"61.5"5.25"1,000 lbs

ConversionModel YearsABCDEFGHIJLM
BraunAbility CompanionVan2019‑202331.5"53"56"N/A52"30.125"12.5°N/A58.5"62"3.125"1,000 lbs
BraunAbility Power Fold‑Out2017‑202332.375"53"56"56"52"30.125"9.1°98.5"71"64"4.5"1,000 lbs
BraunAbility Power Fold‑Out XT2017‑202332.375"57"60"60"52"30.125"8.6°98.5"71"64"3.8"1,000 lbs
BraunAbility Power In‑Floor2017‑202333.5"55"58"58"51.25"32.25"9.9°98.5"71"68"4.8"1,000 lbs
BraunAbility Manual Rear‑Entry2017‑202334.5"56"56"N/A60"34"10°98"N/AN/A5.4"1,000 lbs
VMI Northstar2017‑202329.3"56"59"60"59"30"65.8"91.5"64"4.6"1,000 lbs
VMI Northstar E2017‑202329.3"56"59"60"59"30"11.4°65.8"91.5"64"4.6"1,000 lbs

Model YearsConversionABCDEFGHIJLM
2013-2020BraunAbility CompanionVan Fold‑Out52.5"31"57.25"N/A12.5°52"29.25"N/A55"59.5"4.4"
2013-2020BraunAbility Manual Rear‑Entry54.5"33.25"58"N/A10°58"34"96.5"N/AN/A6"
2013-2020BraunAbility Power Fold‑Out56.5"31.5"61"60"9.6°52"29.25"87.5"57"4.8"
2013-2020BraunAbility Power Fold‑Out XT56.5"31.5"61"60"9.6°52"29.25"87.5"57"4.8"
2013-2019VMI Manual Rear‑Entry33.5"58"59"N/A47"34"96"102"32.75"6"1,000 lbs
2013-2019VMI Northstar30.1"54.8"58.1"57.8"58.8"28.8"9.2°61.3"86"67"5.5"1,000 lbs
2013-2019VMI Northstar E31.3"54"58.1"58.1"59.6"29"12.2°61.3"86"67"5.5"1,000 lbs
2013-2019VMI Summit30.1"54"58.1"58.1"49.8"28.8"10.9°61"85.8"63.4"5.5"800 lbs

ConversionModel YearsABCDEFGHIJLM
BraunAbility CompanionVan2020‑202331.5"53"56"N/A52"30.125"12.5°N/A58.5"62"3.125"1,000 lbs
BraunAbility Power Fold‑Out2020‑202332.375"53"56"56"52"30.125"9.1°98.5"71"64"4.5"1,000 lbs
BraunAbility Power Fold‑Out XT2020‑202332.375"57"60"60"52"30.125"8.6°98.5"71"64"3.8"1,000 lbs
BraunAbility Power In‑Floor2020‑202333.5"55"58"58"51.25"32.25"9.9°98.5"71"68"4.8"1,000 lbs
BraunAbility Manual Rear‑Entry2020‑202334.5"56"56"N/A60"34"10°98"N/AN/A5.4"1,000 lbs
VMI Northstar2020‑202329.3"56"59"60"59"30"65.8"91.5"64"4.6"1,000 lbs
VMI Northstar E2020‑202329.3"56"59"60"59"30"11.4°65.8"91.5"64"4.6"1,000 lbs

Model YearsConversionABCDEFGHIJLM
2013-2020BraunAbility CompanionVan Fold‑Out52.5"31"57.25"N/A12.5°52"29.25"N/A55"59.5"4.4"
2013-2020BraunAbility Manual Rear‑Entry54.5"33.25"58"N/A10°58"34"96.5"N/AN/A6"
2013-2020BraunAbility Power Fold‑Out56.5"31.5"61"60"9.6°52"29.25"87.5"57"4.8"
2013-2020BraunAbility Power Fold‑Out XT56.5"31.5"61"60"9.6°52"29.25"87.5"57"4.8"
2013-2019VMI Manual Rear‑Entry33.5"58"59"N/A47"34"96"102"32.75"6"1,000 lbs
2013-2019VMI Northstar30.1"54.8"58.1"57.8"58.8"28.8"9.2°61.3"86"67"5.5"1,000 lbs
2013-2019VMI Northstar E31.3"54"58.1"58.1"59.6"29"12.2°61.3"86"67"5.5"1,000 lbs
2013-2019VMI Summit30.1"54"58.1"58.1"49.8"28.8"10.9°61"85.8"63.4"5.5"800 lbs

ConversionModel YearsABCDEFGHIJLM
BraunAbility Power In‑Floor2018‑202330.5"54.5"59.5"58"52"30.25"9.2°59"92.25"71"4.8"1,000 lbs
BraunAbility Power Fold‑Out2011‑201730.5"55"60"57.25"52"28.375"8.4°57"91.5"60.5"
VMI Northstar2018‑202330.5"55.25"59"58"58.3"30"8.65°59"92"66"5.25"1,000 lbs
VMI Northstar2011‑201730.75"55.0"60.0"57.25"59.0"30.0"9.2°61.75"91.5"60.5"5"800 lbs
VMI Summit2011‑201730.75"55.0"60.0"57.25"49.5"28.9"10°61.75"91.5"60.5"5"600 lbs

ConversionModel YearsABCDEFGHIJLM
BraunAbility Manual Rear‑Entry2021‑2023N/A56"57.5"N/A45"32.25"12.8°56"N/AN/A5"1,000 lbs
BraunAbility Manual Rear‑Entry2011‑2020N/A54"57"N/A56"32"9.5°87"N/AN/A1,000 lbs
BraunAbility Power Fold‑Out2021‑202331"56"60.5"59.5"52"29.25"58"89"65"5"1,000 lbs
BraunAbility Power Fold‑Out2018‑202031"56"60.5"59.5"52"29.25"7.25°57"89.25"65"1,000 lbs
BraunAbility Power Fold‑Out2011‑201733"56"60"59"52"29.25"7.3°51"82.5"65"
BraunAbility Power In‑Floor2021‑202331"54"58.5"57.5"52"30.3"9.5°57"89.25"65"5"1,000 lbs
BraunAbility Power In‑Floor2018‑202030.5"54"58.5"57.5"52"30.25"8.7°57"89.25"66.5"1,000 lbs
BraunAbility Power In‑Floor2011‑201731"54.25"58"57.5"52"30.25"8.8°45"84"60"
VMI Northstar2021‑202329.3"56.0625"58.5"58.75"58.5"30"8.8°56"86"59.75"5.6"1,000 lbs
VMI Northstar2017‑202030"57.5"61"61"58.5"30"65.5"94.5"64.6"5.6"1,000 lbs
VMI Northstar2011‑201630.5"57"61.8"60.5"58.75"30"8.6°61.5"95"64.5"6.2"800 lbs
VMI Northstar E (ADA)2021‑202329.3"56.1"58.5"58.75"58.5"30"11°56"86"59.75"5.6"1,000 lbs
VMI Northstar E2017‑202030"57.3"61"61"60"30"11.1°65.5"94.5"64.6"5.4"1,000 lbs
VMI Northstar E2011‑201630.5"57"61.8"60.5"59.4"30"12°61.5"95"64.5"6.2"800 lbs
VMI Summit2017‑202029.8"57"61.5"61"55.1"28.9"11.2°65.5"94.5"61.5"5.6"750 lbs
VMI Summit2011‑201630.5"57"61.8"60.5"54.5"28.875"61.5"95"64.5"6.2"750 lbs
